Unique Pump System, Kailash Industrial Complex, Vikhroli West

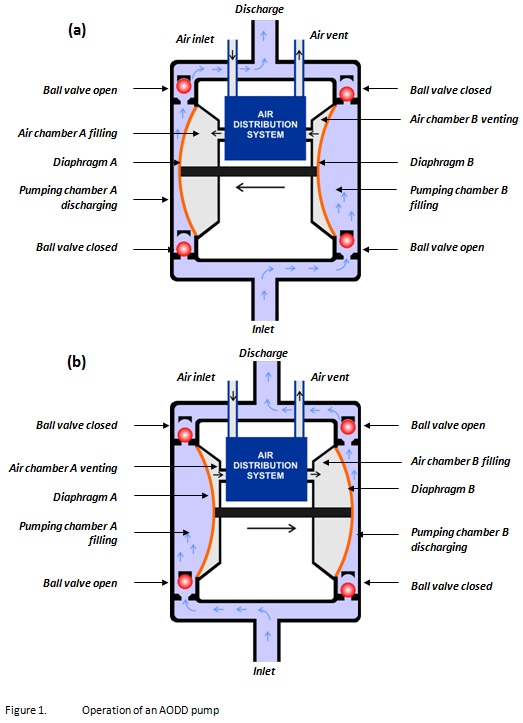

Air-Operated Double-Diaphragm (AODD) pumps are classified as reciprocating, positive-displacement-style pumps. They operate by displacing fluid from one of its two liquid chambers upon each stroke completion. To operate, the diaphragm pumps require a given amount of pressure (measured in pounds per square inch) and air volume (measured in cubic feet per minute) to deliver the proper amount of fluid.
Size: 1/2" to 3"
Flow Rate: 20 lpm to 1000 lpm
Size: 1/2" to 3"
Flow Rate: 20 lpm - 1000 lpm
Size: 1/2" - 3"
Flow Rate: 20 lpm to 1000 lpm
Size: 1/2" - 3"
Flow Rate: 20 lpm to 1000 lpm
| Mining (Can operate in classified/hazardous areas) |
Dewatering above and below ground sites and quarries Transferring abrasive slurries and sludge mixtures Dosing reagents Transferring solvents for separating minerals from ore Transferring fuels for vehicles and equipment |
|---|---|
| Coatings (Can pump low to very viscous solutions, |
Transferring, dispensing and dosing paint, ink and dyes Feed pump for spray guns Flush/clean paint lines with solvents |
| Ceramics (Can operate with highly abrasive slurries) |
Ceramic slips Day tank transfer Filling moulds Circulating ceramic slurry Waste water transfer |
| Chemical (Excellent chemical resistance with corrosive/ |
Loading and unloading tankers, totes and barrels Portable utility pump Batching/dosing chemicals |
| Electroplating and Anodizing |
Replenishing chemicals in plating and metal finishing tanks Agitation of cleaning solutions Circulation of liquid to avoid sedimentation Filtration (when critical purification is required for high quality parts) Offloading corrosive, solid laden waste |
| Pulp and Paper |
Printing inks Glues Kaolin clay Bulk transfer Resins Dispersions |
| Oil and Gas (Can operate in classified/hazardous areas) |
Settling pond transfer Oils and glycol transfer Sumps Filter press Bulk transfer |
| Water / Waste Water Treatment |
Transferring solid laden media Filter press Sumps Utility pump |
| Minimum Order Quantity | 1 Piece |
| Head | Up to 40 Mtr |
| Max Flow Rate | 230 LPM |
| Filtration Capacity | 13000 Litres/hr |

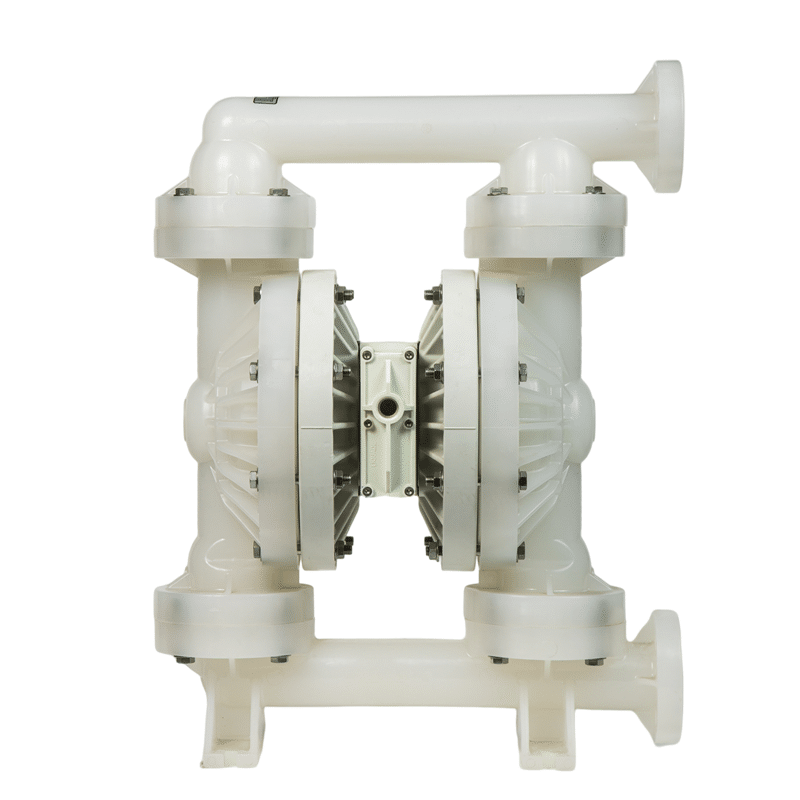

| Model Name/Number | AOD-400 PP |
| Material | PP |
| Size | (1/2" to 3") |
| Usage/Application | Filter press Application , Slurry Transfer , Acidic Material Transfer |
| I Deal In | New Only |
| Capacity | 13 M3/hr |
| Driven Type | Air Driven |
| Operating Temperature | 80 Degree C |
| Size/Dimension | 1.5" Suc X Dis |
| Solid Hand Size | 4.76 mm |
| Temperature | Up to 80 Degree C |
| Type | Air Operated Diaphragm |
