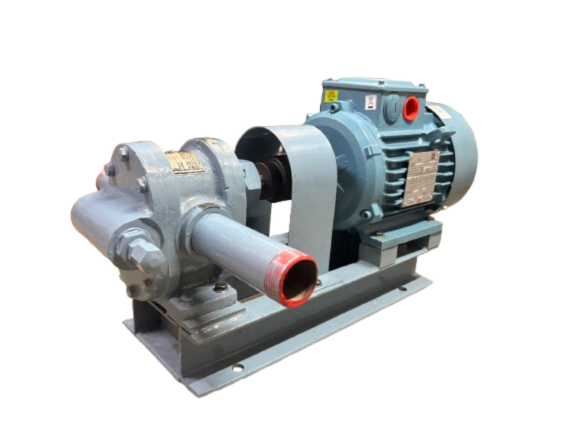

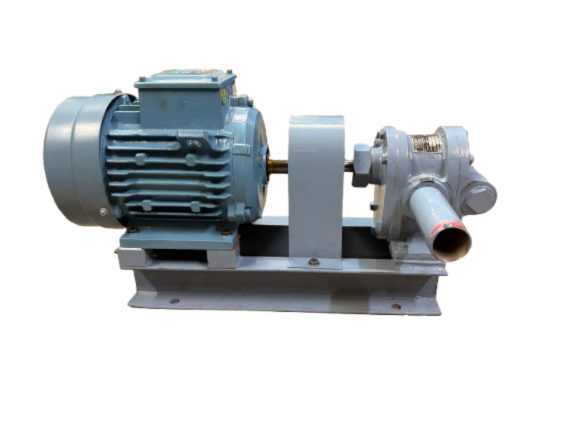

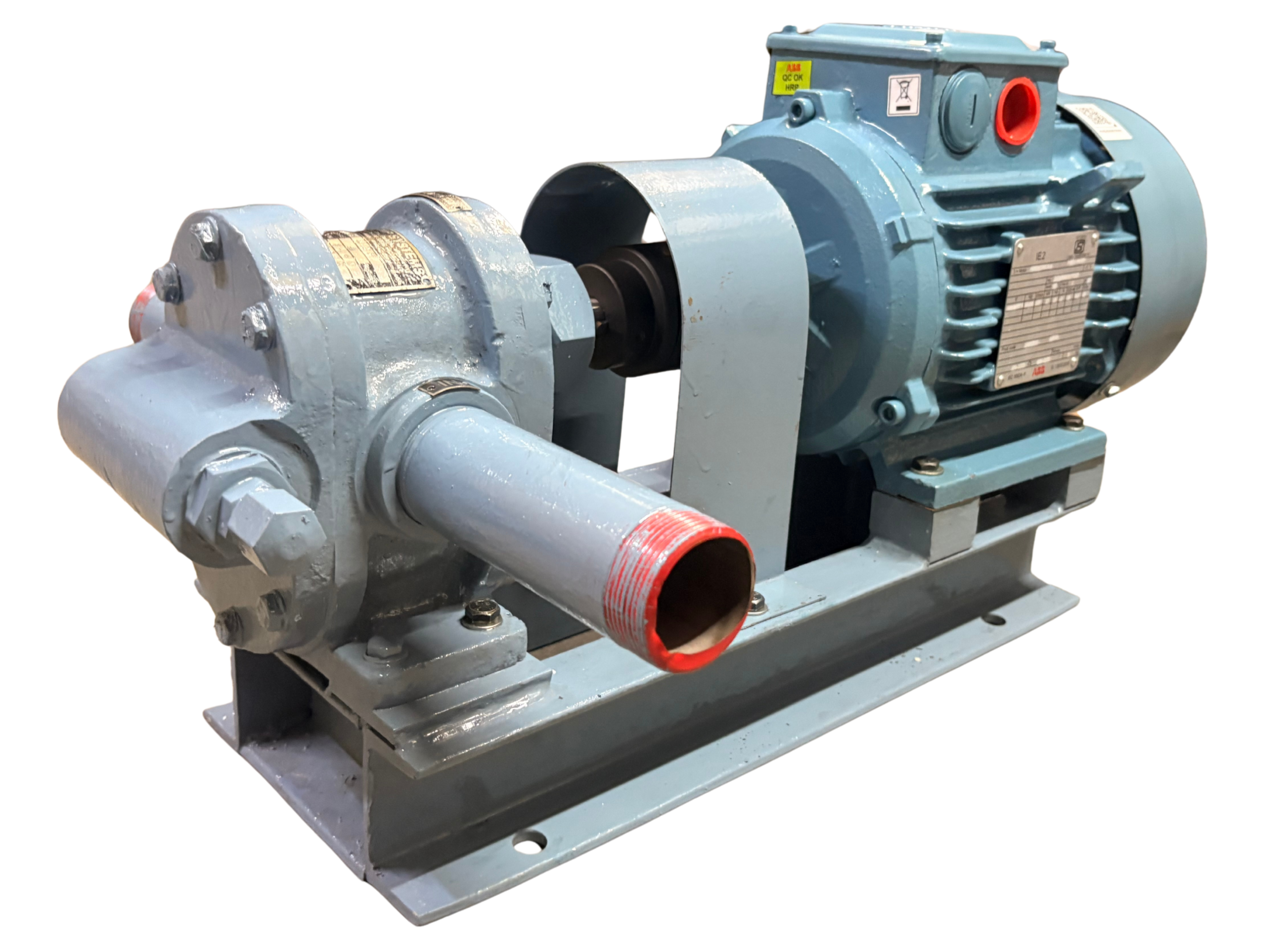

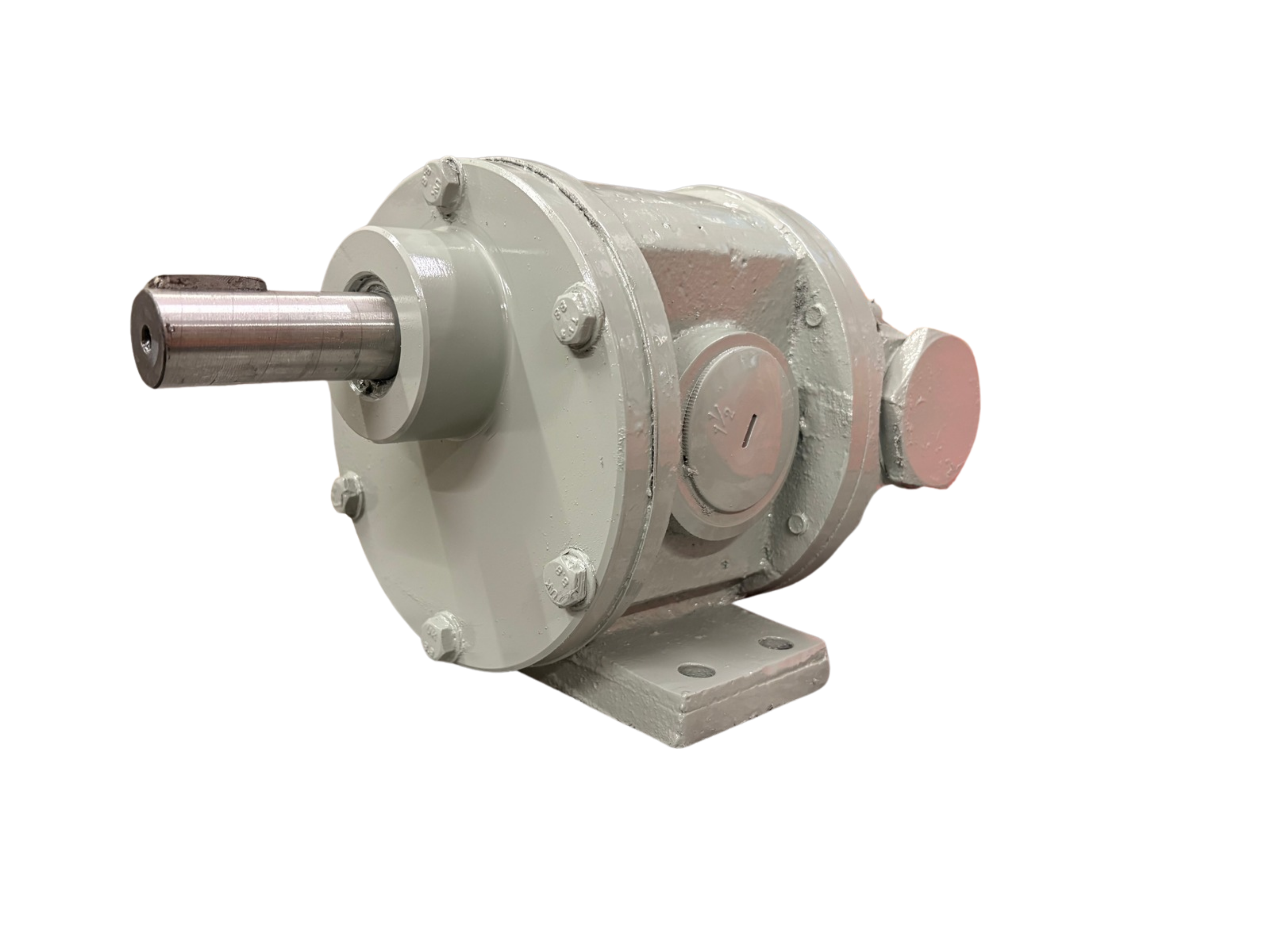

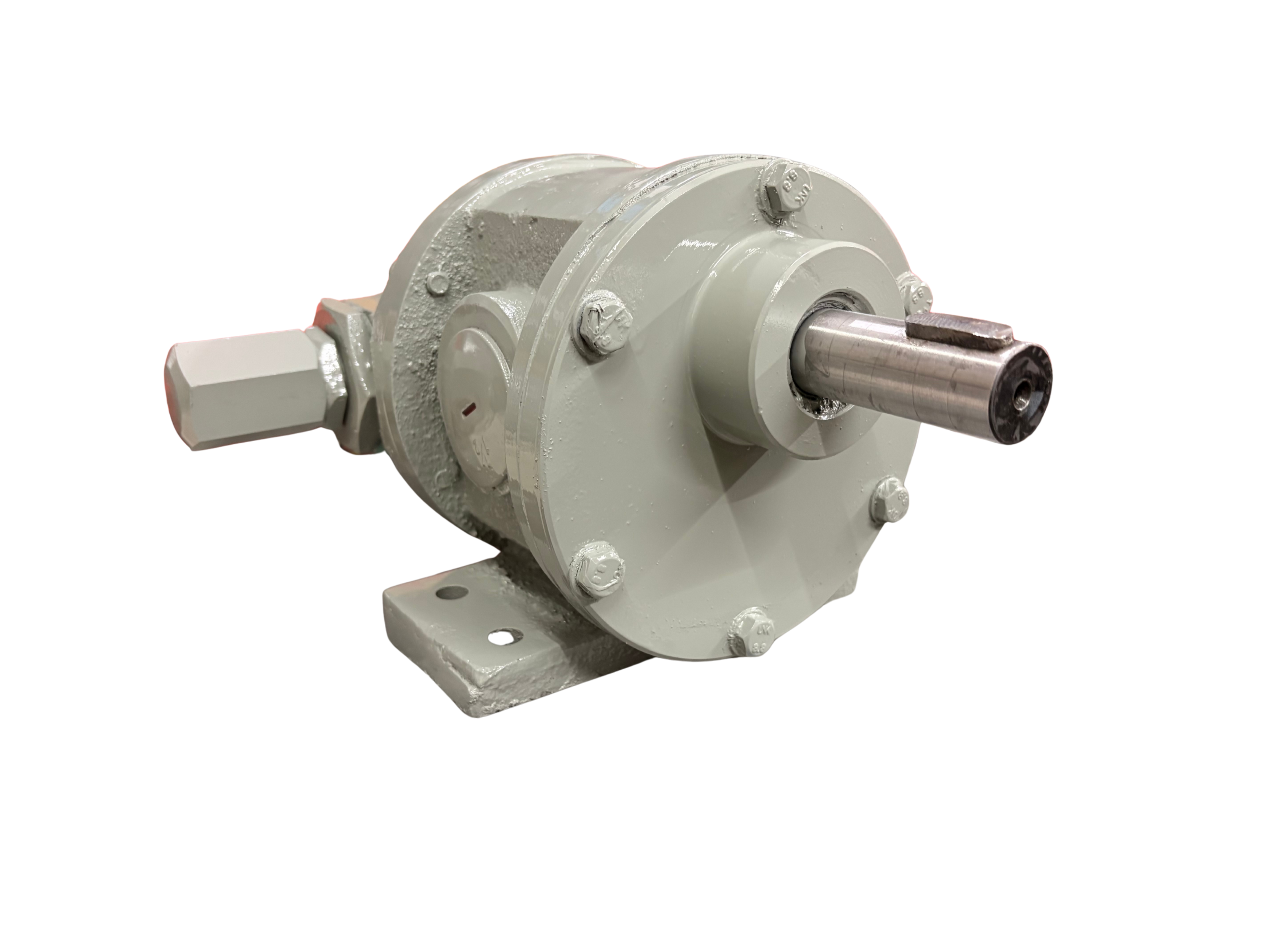

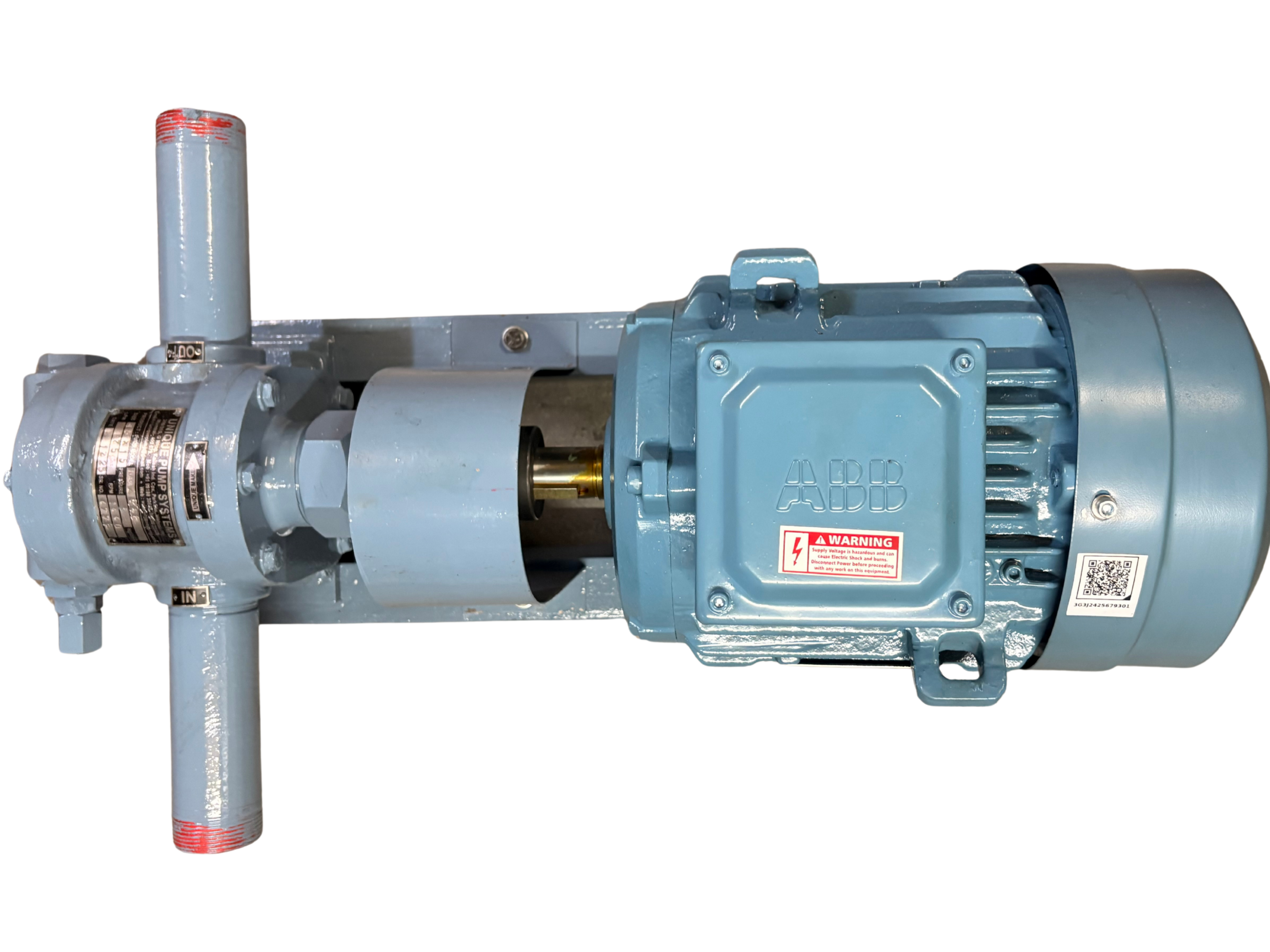

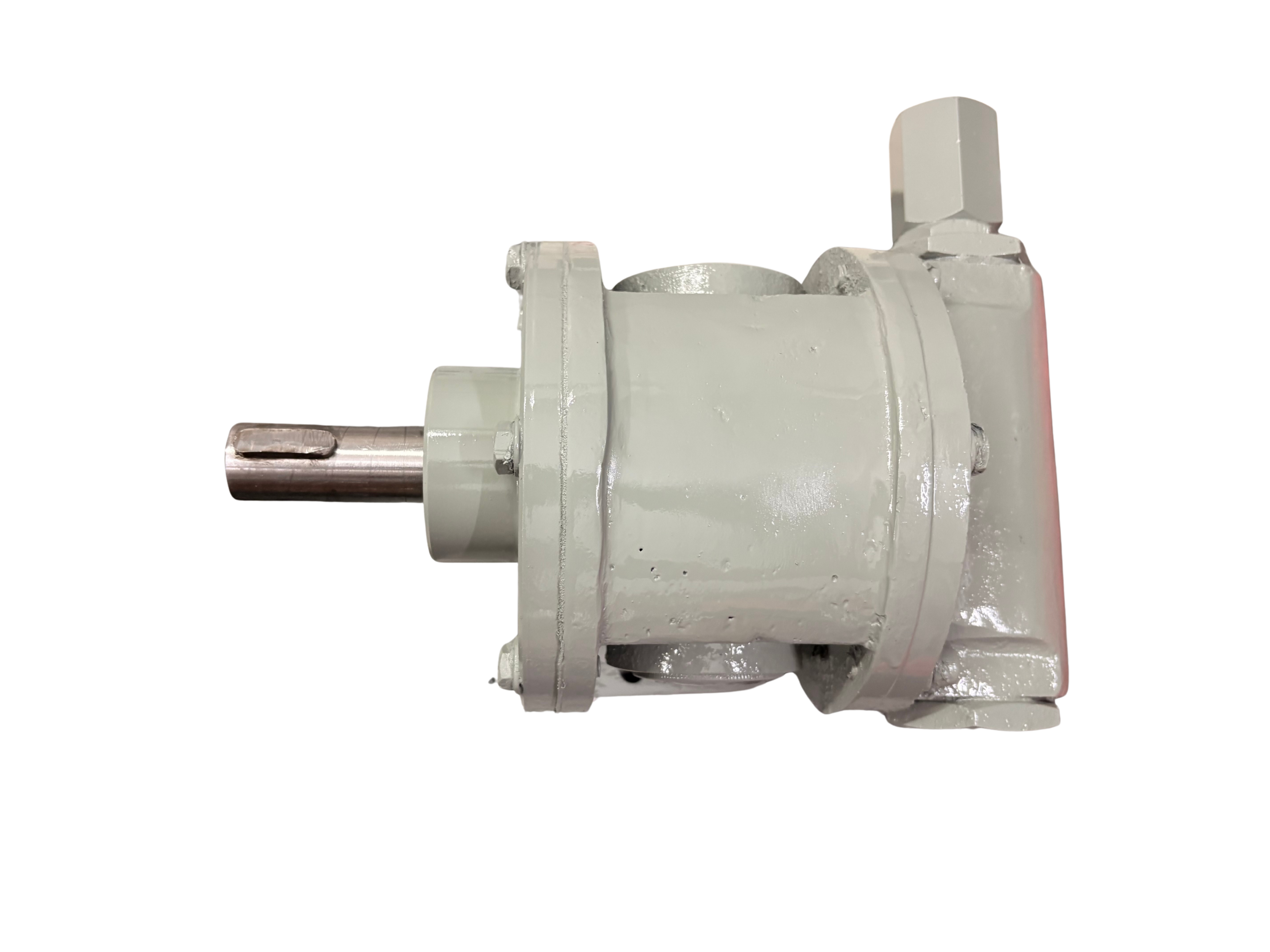

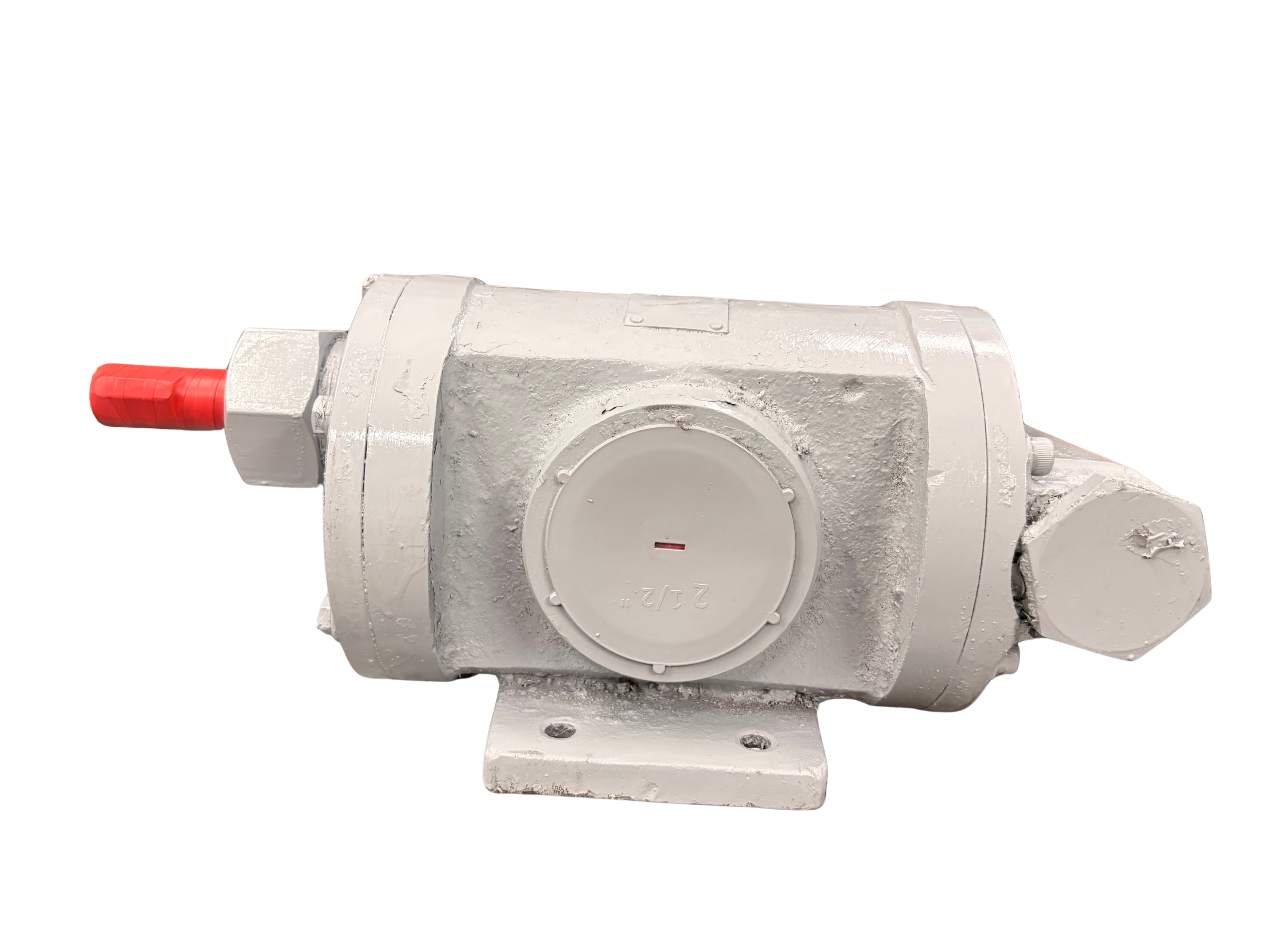

Unique Pump Systems is a leading manufacturer and supplier of Rotary Gear Pumps in Mumbai, offering high-quality, precision-engineered solutions for a wide range of industrial applications. Our rotary Gear Pumps are designed with a simplified internal flow system that efficiently handles fluids of varying viscosities while minimizing internal losses.

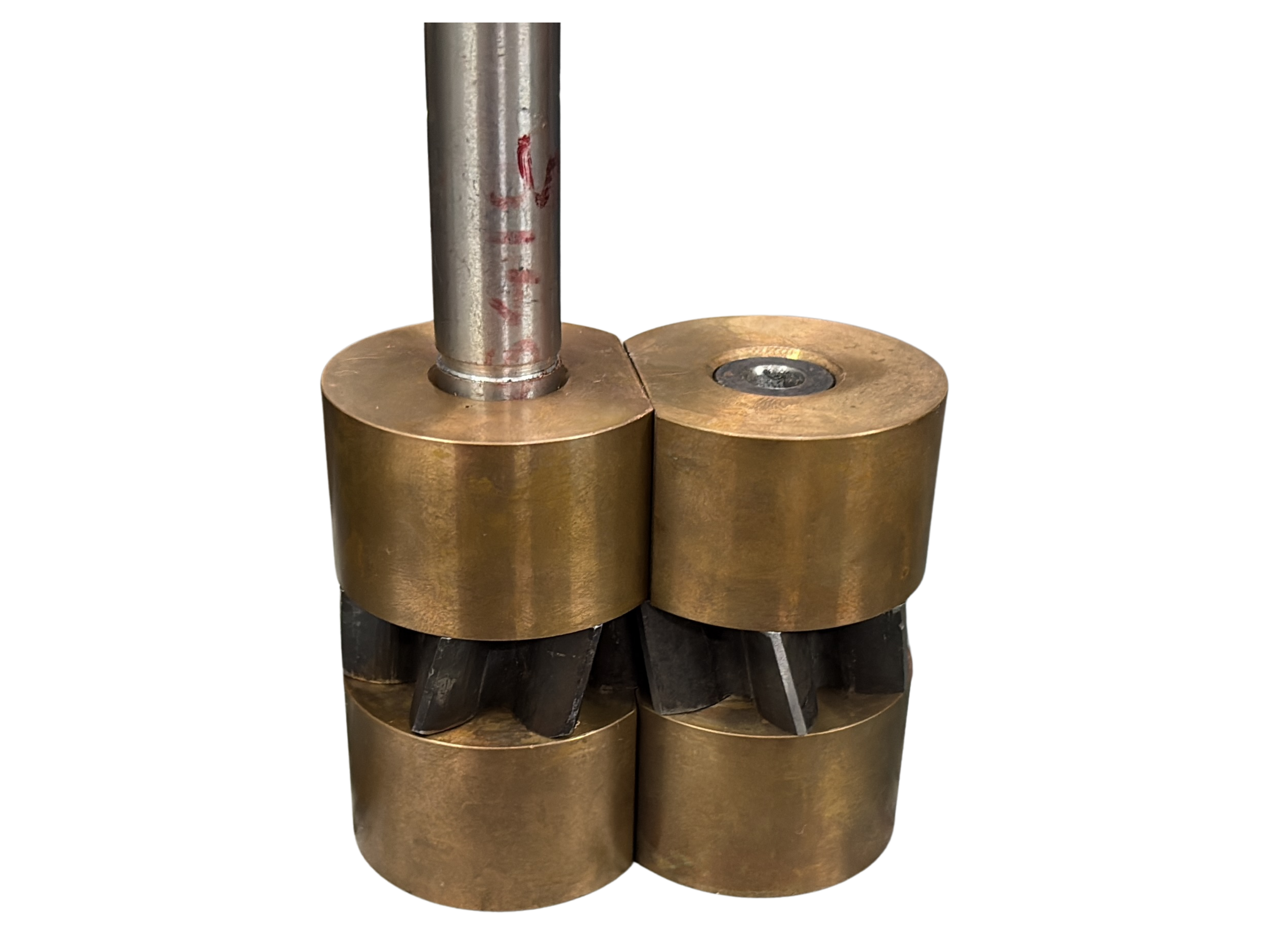

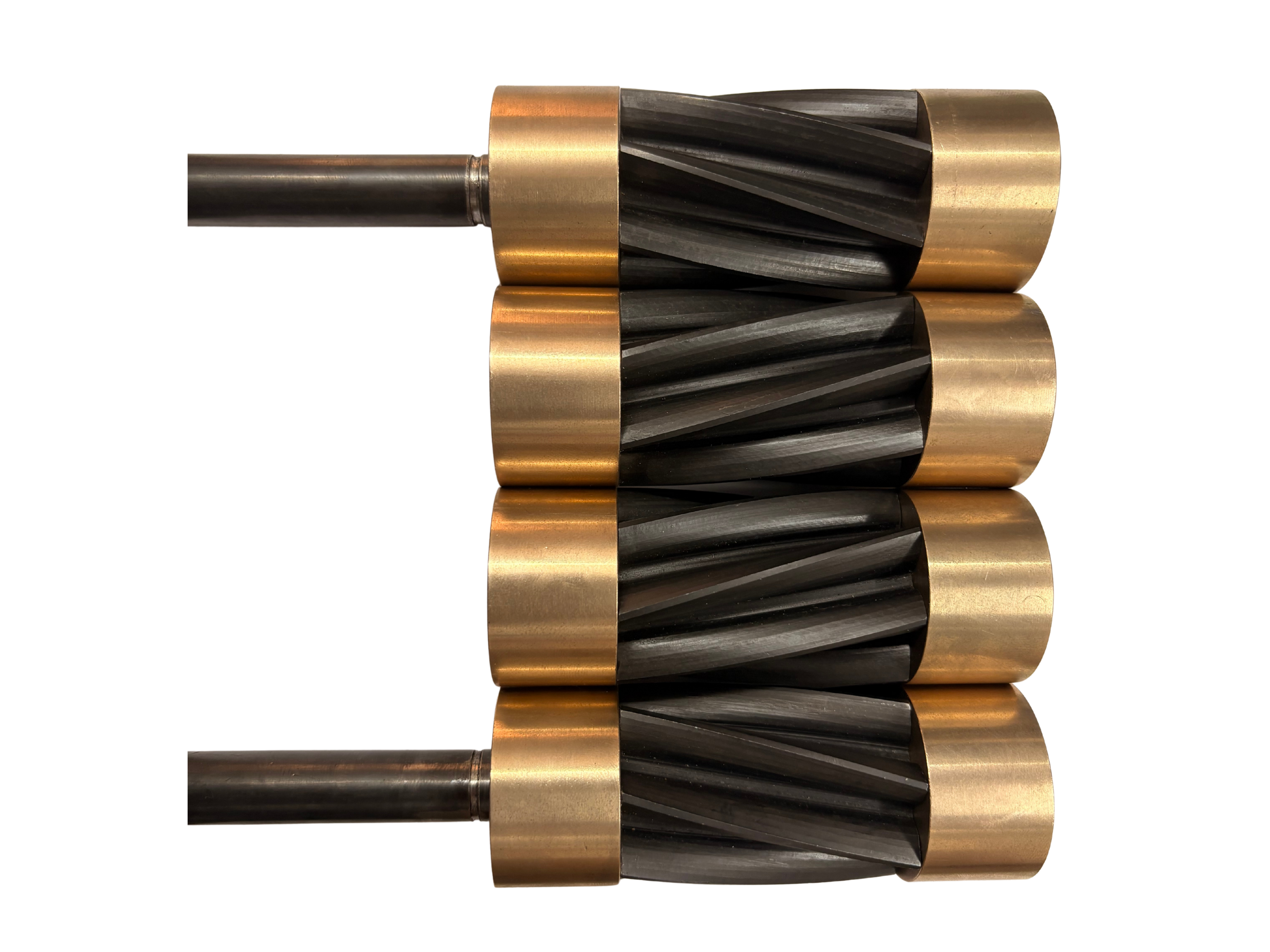

Our rotary Gear Pumps are built with hardened helical gears, ensuring extended operational life and quiet, pulsation-free flow. The helical gear design provides a larger face area for added strength, and the precision-machined teeth engage gradually—preventing fluid trapping and absorbing operational shocks. The full hydraulic balance eliminates the need for complex balancing systems or thrust bearings.
We use internally mounted bearings placed close to the load to reduce shaft deflection, even under high pressure. The compact, short shaft design, combined with force-feed lubrication from the pumped fluid, ensures minimal leakage, no lubricant contamination, and no need for a separate lubrication system.
Pump Body & Covers: Mild Steel, Stainless Steel, Gun Metal, Cast Iron, Bronze, Super Alloys
Shafts & Gears: Carbon Steel or Stainless Steel (Hardened and Profile-Ground Gears as required)
Shaft Sealing: Oil Seals, Mechanical Seals, or Gland Packing
Bearings: Steel Antifriction or Bush Bearings (G.M., Bronze, Carbon, Teflon)
| Model No. | Suction X Delivery Size | Capacity Range LPM | Std. Pump Speed RPM |
|---|---|---|---|
| UA-5 | 3/8" x 3/8" | 2 To 5 | 1440 |
| UA-10 | 1/2" x 1/2" | 6 to 20 | 1500 |
| UA-15 | 3/4" x 3/4" | 21 to 30 | 1500 |
| UA-15SP | 3/4" x 3/4" | 31 t0 50 | 1500 |
| UA-20 | 1" x 1" | 51 t0 75 | 1500 |
| UA-25 | 1 1/2" x 1 1/2" | 76 t0 100 | 1500 |
| UA-25 SP | 1 1/2" x 1 1/2" | 101 t0 160 | 1500 |
| UA-50 | 2" x 2" | 161 t0 225 | 1500 |
| UA-50 SP | 2 1/2" x 2 1/2" | 226 t0 350 | 1500 |
| UA-100 | 3" x 3" | 351 t0 550 | 1500 |
| UA-100 SP | 3" x 3" | 351 t0 750 | 1500 |
| UA-200 | 4" x 4" | 751 t0 1200 | 1500 |
| UA-400 | 4" x 4" | 1201 t0 1800 | 960 |
| UA-600 | 6" x 6" | 1801 t0 2500 | 960 |
| UA-800 | 8" x 8" | 2501 t0 6000 | 720 |
With higher viscosities pumps are operated at lower speeds
General recommendations of speed are as under
| Viscosities Range In Cst | Pump Speed (RPM) |
|---|---|
| UP-400 | 1440 |
| 400 to 1000 | 960 |
| 1000 to 3500 | 720 |
| 3500 to 10000 | 500 |
| 10000 to 50000 | 200-300 |
| 50000 & above | Please Consult |
| Without Pressure Relief valve | Type UA |
| With Pressure Relief Valve | Type UAV. Protect system from discharge line obstruction |
| Mechanical Seal | Type UAM. Positive Sealing/ Minimum Leakage. Packed pump can be retrofitted. |
| Flange Mounted | Type UAF. Provide vertical mounting facility |
| External Bearing | Type UAX. It is an externally lubricated pump recommended for use where the liquid to be transferred does not contain any lubricating properties. |
| Stem jacketed Type | UASJ. Specially for liquids which solidify or become highly viscous at Room temperature like RSHS, FO, HFO, HHS, Glucose, Soap stock, high Viscosity Oils, Wax, Grease, Coal Tar, Bitumen, Adhesives etc. Steam circulating in the pump body to heat the liquid being pumped |
| Higher Pressure | UAHP. By providing highly precision profile ground gear high pressure up to 70kg/cm can be developed. |

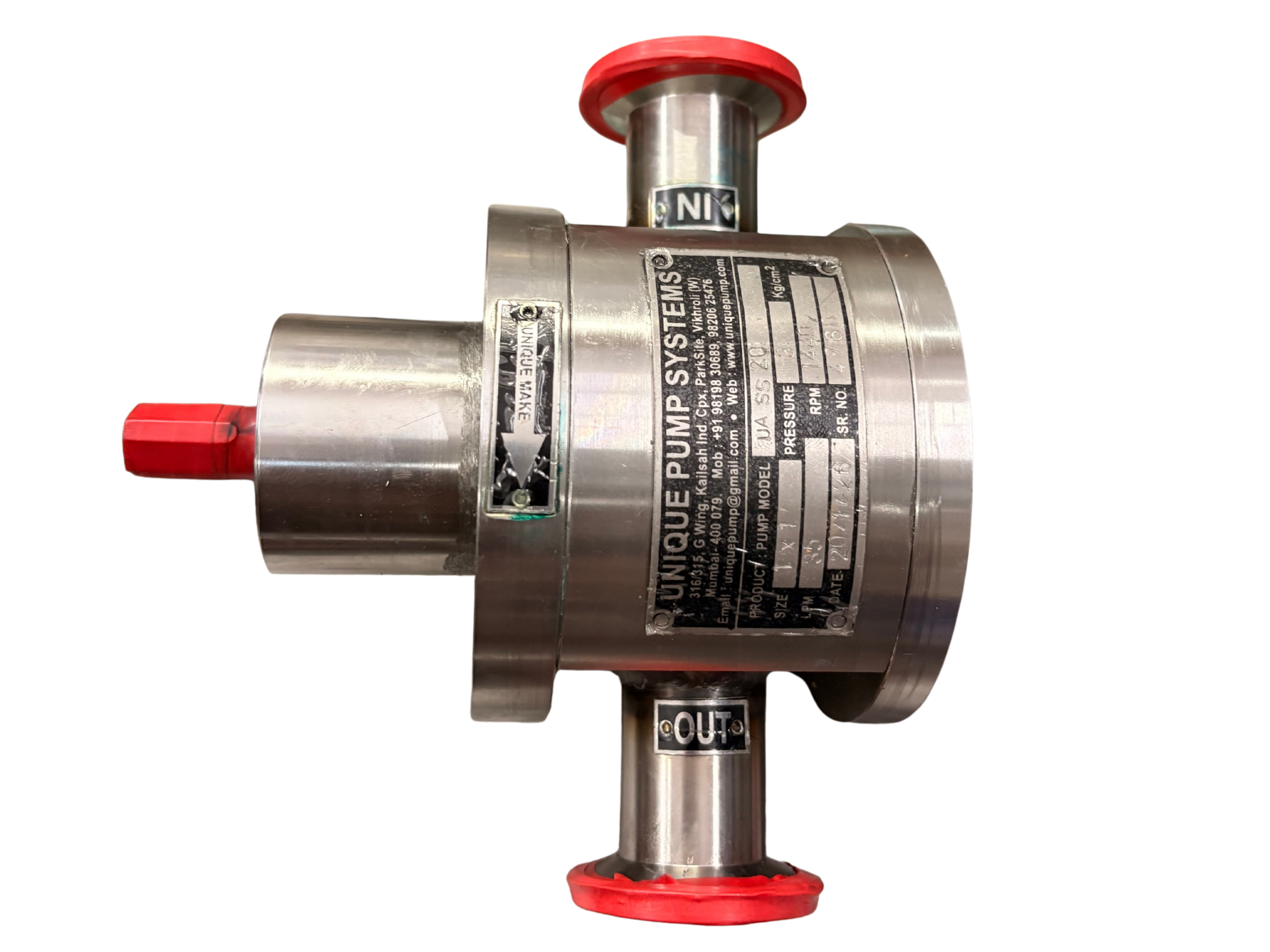

| Stainless Steel | UAS & UASS. For food product & liquid which react with CI & other maintenance |
| Stainless Steel | UAS & UASS. For food product & liquid which react with CI & other maintenance |
| Custom Designed Pumps | To meet special requirements. |

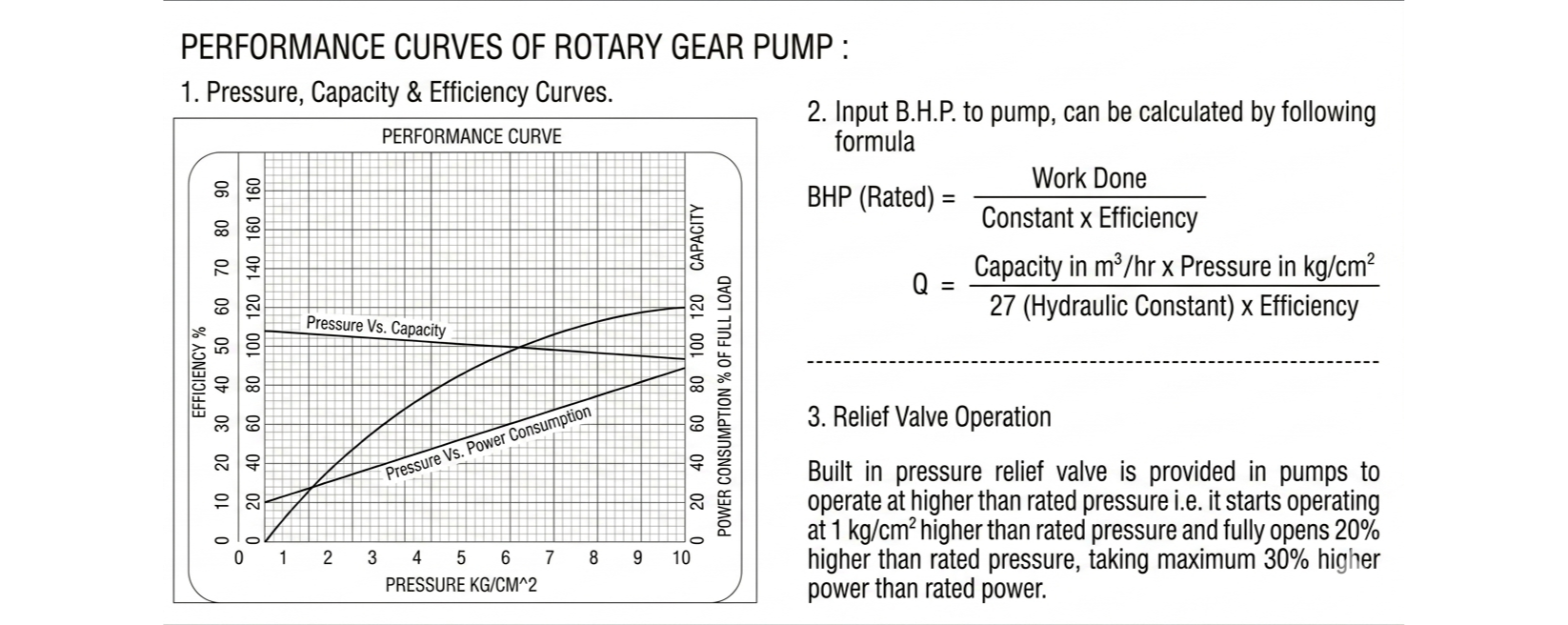

Pressure, Capacity & Efficiency Curve
Input B.H.P. pump, can be calulated by following formula
BHP (Rated) = Work Done
-----------
Constant x Efficiency
Q = Capacity in m3/hrx Pressure in
kg/cm2
---------------------------------
27 (Hydraulic Constant) x Efficiency
Built in pressure relief valve is provided in pumps to operate at higher than rated pressure ie. it starts operating at 1 kg / cm higher than rated pressure and fully opens at 20 % higher than rated pressure, taking maximum 30 % higher power than rated power.

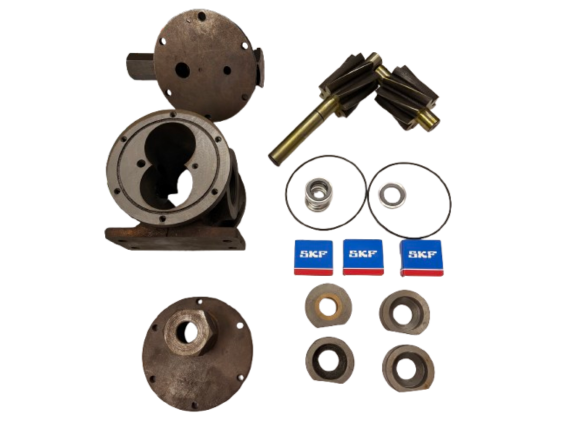

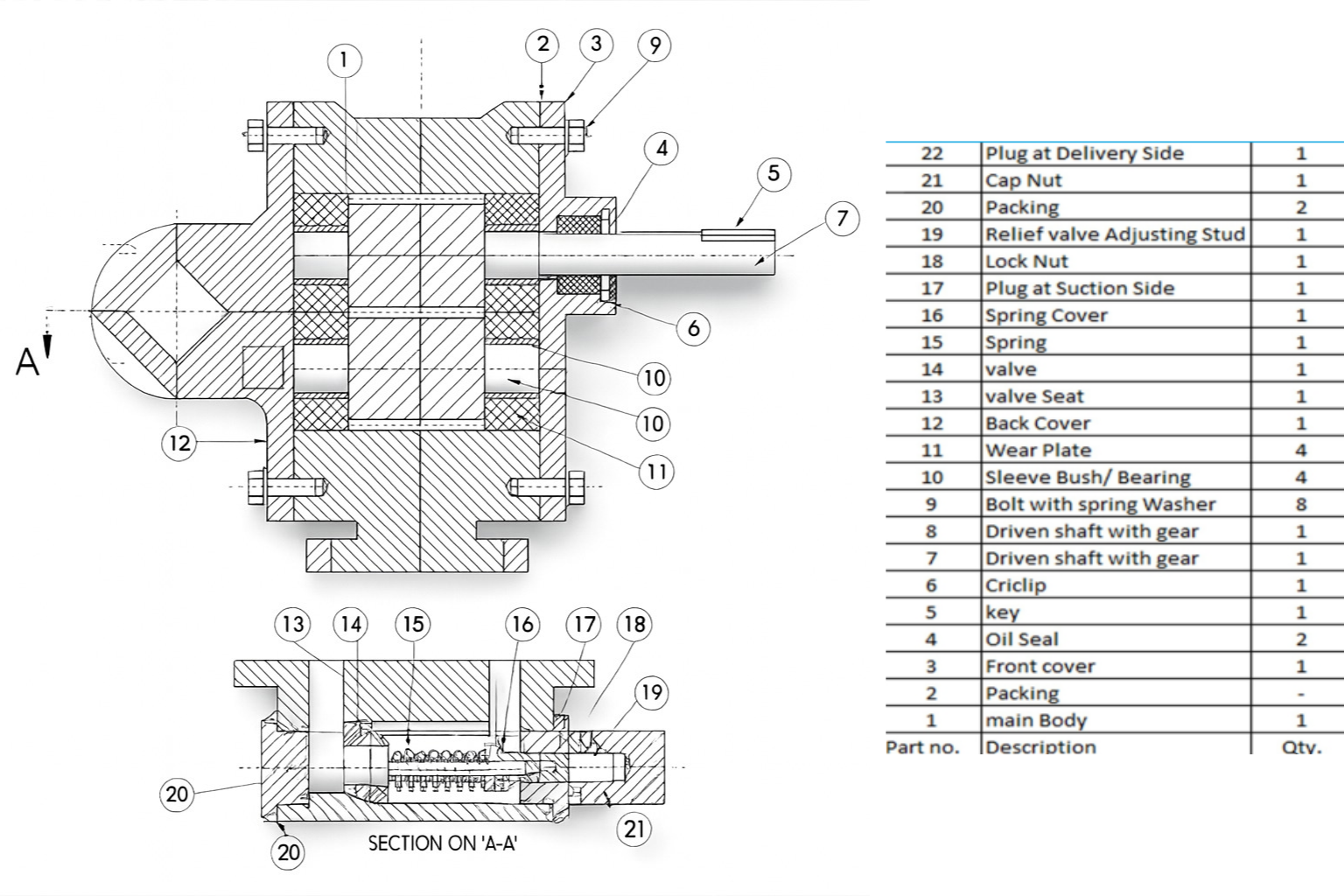

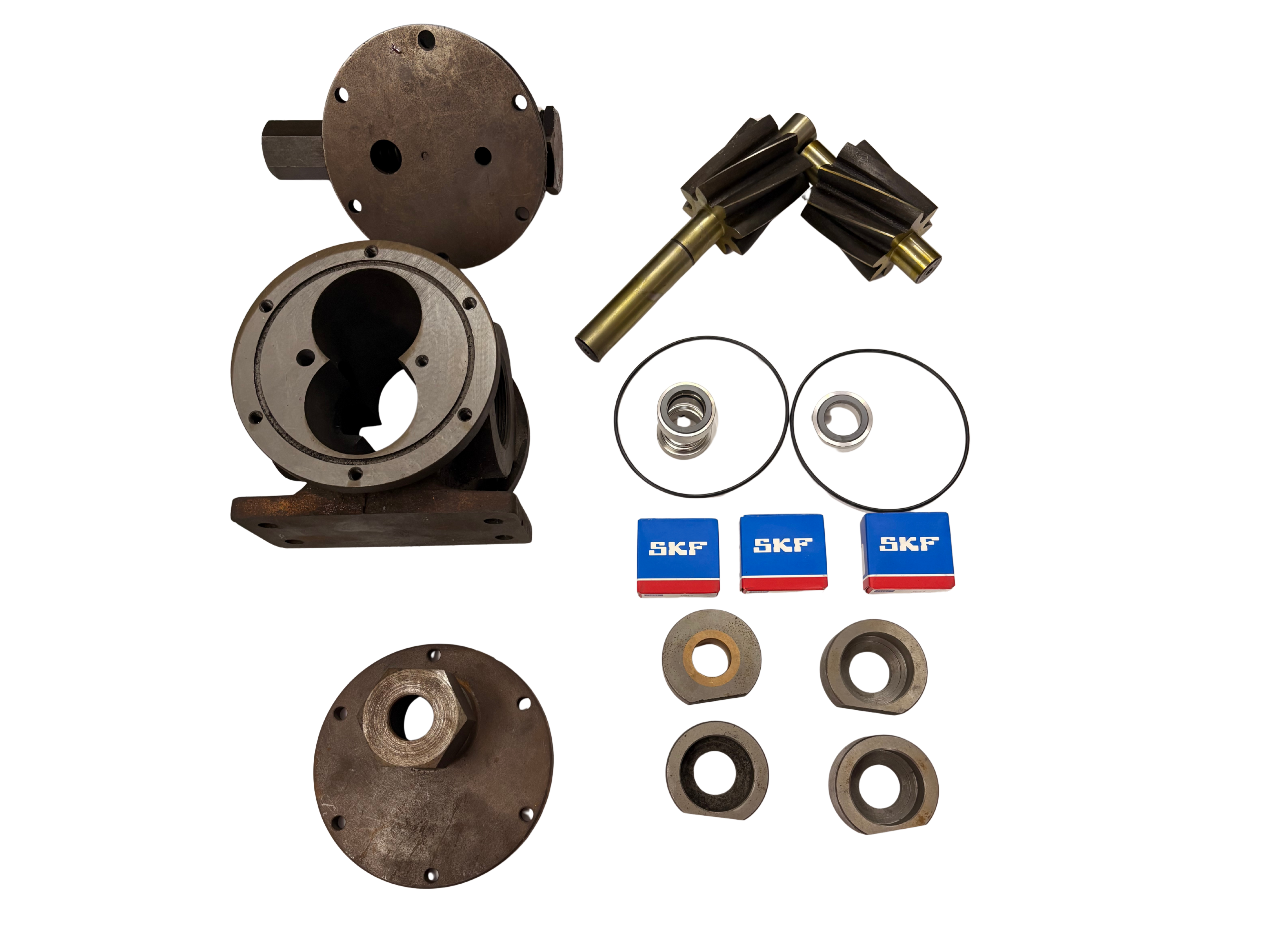

| Part no. | Description | Qty |
|---|---|---|
| 1 | Main Body | 1 |
| 2 | Packing | - |
| 3 | Front Cover | 1 |
| 4 | Oil Seal | 2 |
| 5 | Key | 1 |
| 6 | Circlip | 1 |
| 7 | Driven shaft with gear | 1 |
| 8 | Driven shaft with gear | 1 |
| 9 | Bolt with spring washer | 8 |
| 10 | Sleeve Bush / Bearing | 4 |
| 11 | Wear plate | 4 |
| 12 | Back Cover | 1 |
Looking for high-performance Rotary Gear Pumps? Contact us today to discuss your requirements or get a custom quote.
