Unique Pump Systems stands apart in the crowded market of lobe pump manufacturers in India. Unlike generic suppliers, we design every rotary lobe pump for specific process needs — whether you are pumping abrasive chemicals, shear-sensitive cosmetics, or food-grade dairy.
Our lobe type pump design eliminates metal-to-metal contact in the pumping chamber, ensuring zero contamination and minimal wear. We combine precision-machined timing gears with Indian manufacturing expertise to deliver a pump that offers the lowest total cost of ownership in the industry.
Product purity is guaranteed at all times.
Pan-India service and application engineering network.
Flanged or threaded to suit your existing piping.
Unique Pump Systems Alfa Series — Rotary Lobe Pump Range
A lobe pump is a type of positive displacement (PD) pump that transfers fluid using two or more lobed rotors rotating inside a pump casing. Unlike gear pumps, the rotors in a rotary lobe pump never come into direct contact with each other — they are synchronised by external timing gears located in a separate gear case. This fundamental design feature makes lobe pumps the preferred choice for applications requiring hygienic, gentle, and contamination-free fluid handling.
The lobe type pump creates sealed chambers between the rotors and casing as they rotate. Fluid is trapped in these chambers at the inlet and positively displaced to the outlet with every rotation — delivering a smooth, metered, near-pulsation-free flow. The absence of metal-to-metal contact in the pumping zone means the pump can handle shear-sensitive, particulate-laden, and viscous fluids without degradation.
Understanding the working principle of a rotary lobe pump helps you appreciate why it is the correct choice for hygienic and gentle fluid transfer. Here is a step-by-step breakdown of the operating cycle:

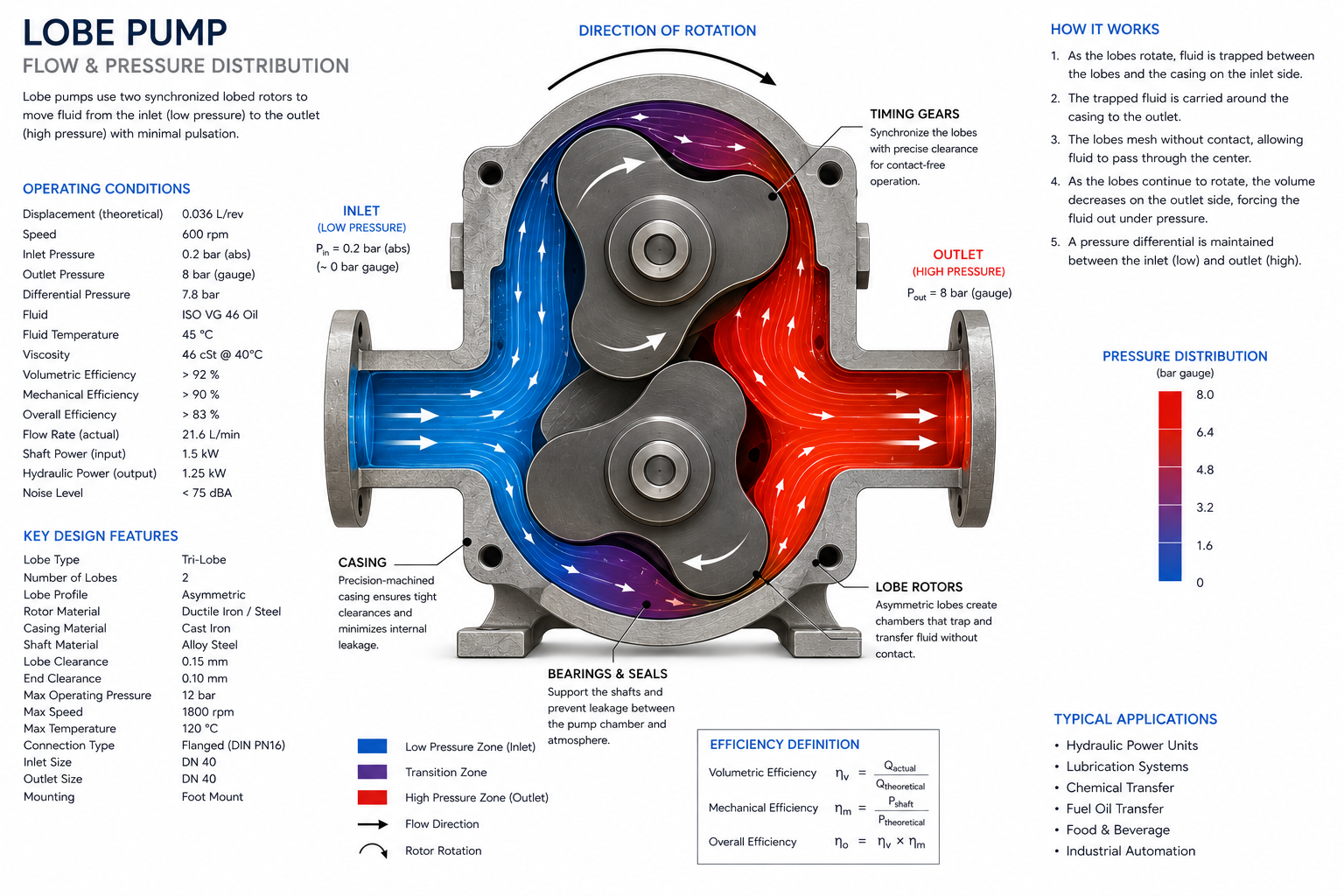

Schematic diagram of a rotary lobe pump showing fluid path and rotor synchronisation
As the lobes rotate outward and away from each other at the inlet, expanding cavities create a low-pressure zone. Fluid is drawn in smoothly from the suction port without turbulence or agitation.

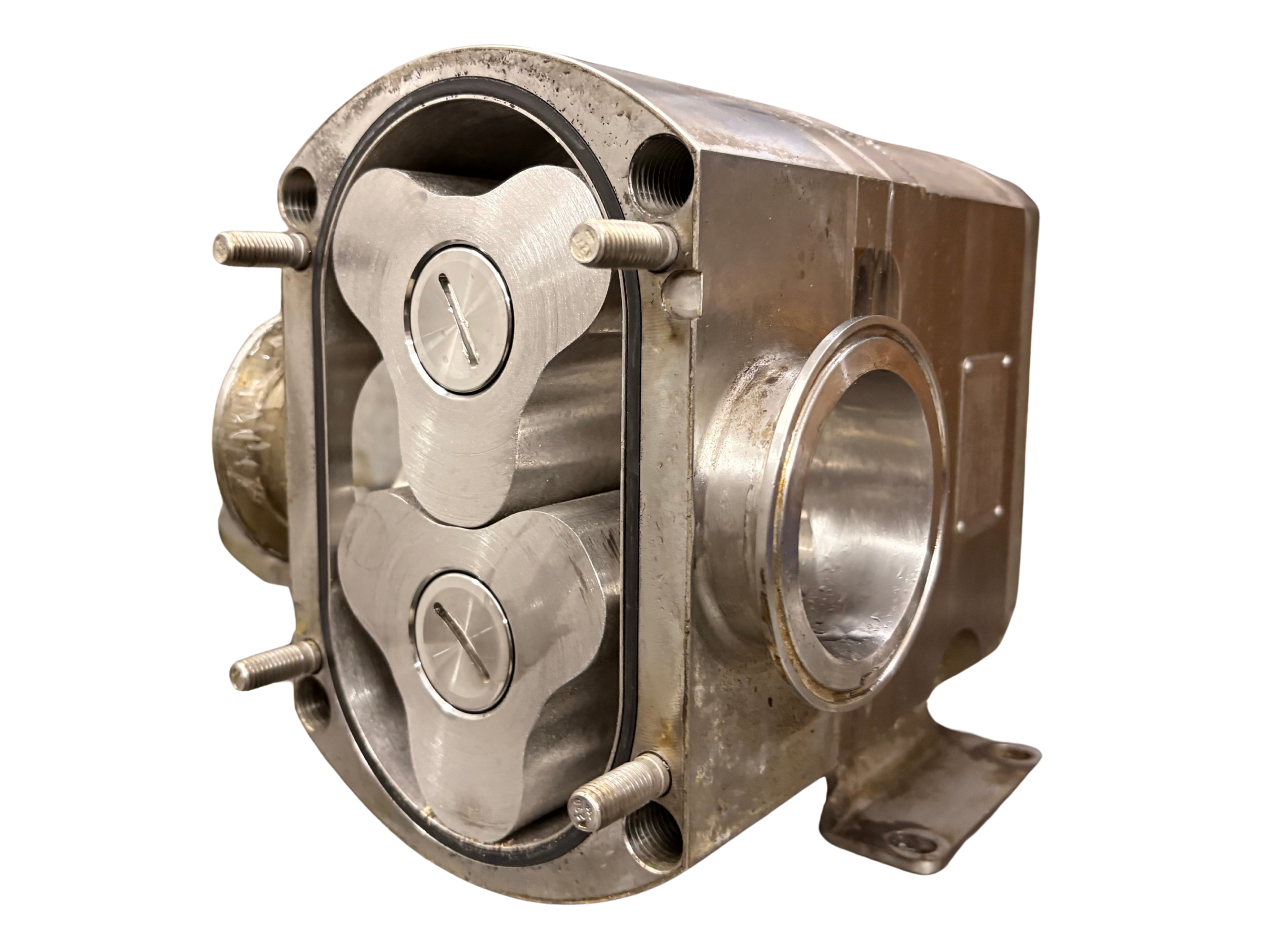

Each lobe pocket traps a precise volume of fluid between the rotor and the casing wall. This trapped volume is then carried around the outer circumference from the inlet toward the outlet — gently and without shear.
At the outlet, the lobes rotate back toward each other, reducing the volume of the fluid pocket and forcing the fluid out through the discharge port at controlled, consistent pressure.
External timing gears in the separate gear case keep both rotors precisely synchronised at all times — maintaining the critical clearance between them without any contact. This is what makes the lobe pump hygienic and gentle on the product.
Our Alfa Series rotary lobe pumps are available in low, medium, and high-pressure configurations to match the full spectrum of industrial and hygienic applications. Below is the complete performance range from Unique Pump Systems:
| Series / Model | Port Size | Max Pressure | Max Speed (RPM) | Capacity (LPM) | Best Suited For |
|---|---|---|---|---|---|
| UAL-100 | 1" | 7 kg/cm² | 960 | Up to 100 | Oils, Syrups, Chemicals |
| UAL-200 | 2" | 7 kg/cm² | 720 | Up to 300 | Dairy, Cream, Beverages |
| UAL-400 | 4" | 5 kg/cm² | 600 | Up to 750 | Tomato Paste, Sludge, Viscous Fluids |
| UAL-600 | 6" | 3 kg/cm² | 400 | Up to 1000 | Effluent, High Solid Content |
| UAL-1200 | 12" | 3 kg/cm² | 200 | Up to 2000 | Industrial Bulk Transfer |
Unique Pump Systems manufactures the Alfa Series in three pressure variants to match your specific operating requirements:
Standard Models
Low-pressure configuration engineered specifically for delicate food-grade and dairy applications where gentle handling and product integrity are the priority.
Teflon Bearing Models
Medium-pressure variant with Teflon/Rulon bushings for chemical solvents, cleaning agents, and applications where standard bearing materials are incompatible with the fluid.
Overhung Bearing Models
High-pressure configuration for viscous oils, industrial resins, and heavy-duty continuous transfer where maximum mechanical robustness under pressure loading is required.
For full performance data tables with specific model-wise flow curves, please download our technical brochure or contact our application engineers.
While other lobe pump manufacturers focus only on flow rate, Unique Pump Systems focuses on the entire lifecycle of your pump. Here are the design features that set our Alfa Series apart:
A generous physical distance between the pump head and gear case prevents gear oil from ever migrating into your product. For pharmaceutical and food-grade applications, this eliminates the risk of costly batch rejection and compliance failure.
Precision-machined, hardened timing gears ensure that even under 24/7 continuous full-load operation, rotor synchronisation is maintained without slipping or jamming — extending the operational life of your investment.
Tool-free front cover access to rotors without disconnecting pipework. Fully CIP (Clean-in-Place) and COP (Clean-out-of-Place) capable, making it the ideal choice for dairy, beverage, and pharmaceutical production lines.
Unlike centrifugal pumps, the positive displacement lobe pump provides a gentle rolling action. It handles whole curds, cherry tomatoes, polymer gels, and intact fruit pieces without mechanical degradation or quality loss.
Shafts, gears, and bearings are engineered to be removed as a single cartridge assembly — reducing maintenance downtime by up to 60% compared to conventional designs that require full disassembly.
Flow direction can be reversed simply by reversing motor rotation — without any internal modifications. This provides exceptional operational flexibility for filling, dosing, and CIP return-flow applications.
Unique Pump Systems are designed for high mechanical efficiency — meaning less energy consumption, lower operating cost, smaller motors, and lower drive costs. Rotor shafts are sealed by hygienic mechanical seals or by packed glands selected for the duty conditions. A generous distance separating the pump head from the gear case eliminates any risk of cross-contamination.
Positive, uninterrupted displacement by specially designed rotors creates a steady, gentle pumping action that does not shear, agitate, or aerate the product — protecting the integrity of sensitive materials throughout the entire transfer process.
The easy-clean pump head is ideal for in-place cleaning or can be rapidly stripped for manual cleaning without disconnecting the pipework. Ports are threaded or flanged to suit customer requirements. Pumping chambers are constructed without pockets or crevices that could harbour bacteria or contaminants. There are no internal bearings in the pump head. Solid stainless steel AISI 316 quality pump head, rotors, and shafts. Robust cast iron gear case enclosing oil-lubricated rolling bearings and precision timing gears.

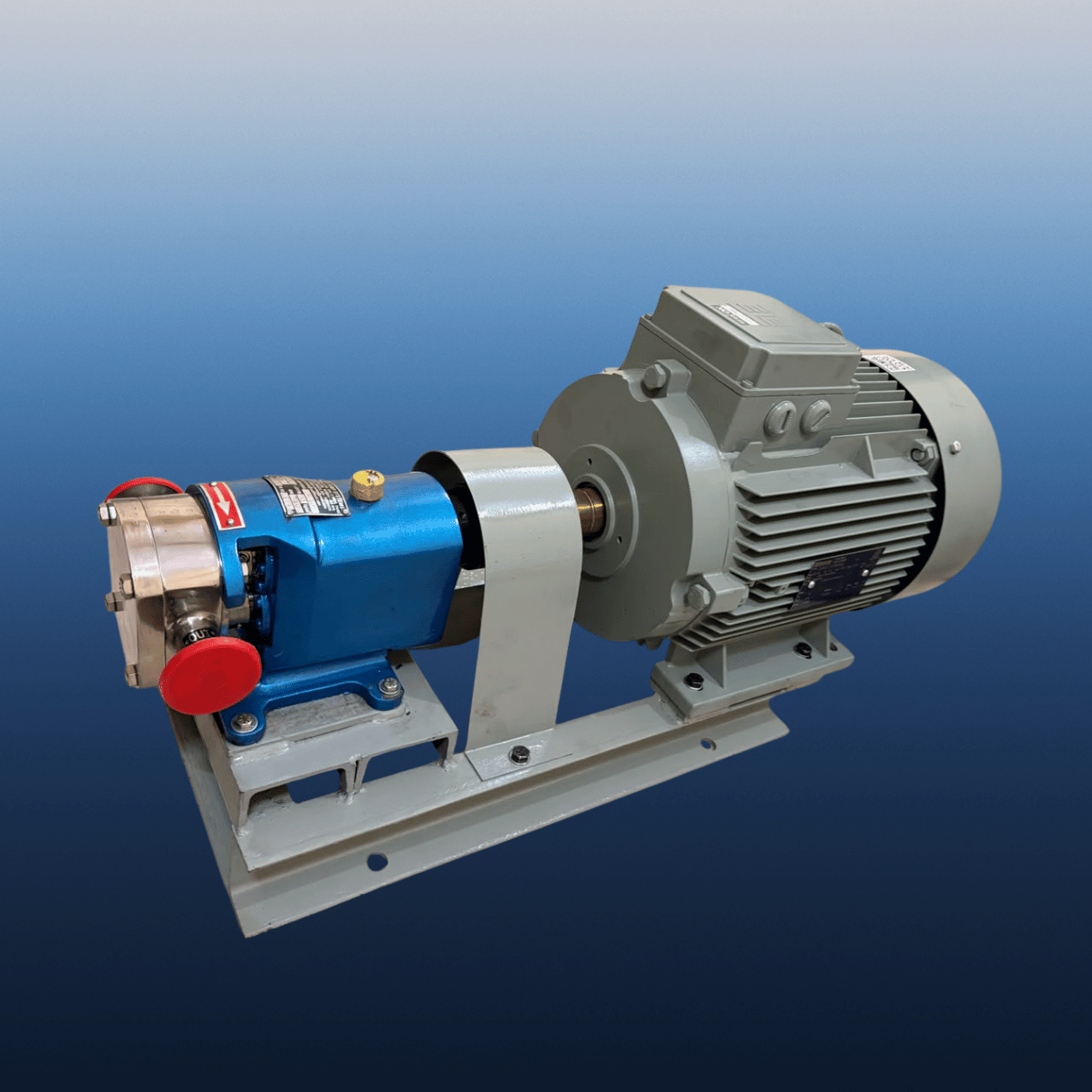

Rotary Lobe Pump
Unique Pump Systems are not merely lobe pump suppliers — we are solution providers. Our Alfa Series lobe pumps are field-proven across the widest range of industrial and hygienic fluid transfer applications in India:
Challenge: Pumping corrosive solvents, abrasive inks, and reactive chemicals without contamination or rapid wear.
Solution: AISI 316 stainless steel pump head with Rulon bushings. Reversible flow for flexible filling and dosing.
Challenge: Pumping curd, yoghurt, cream, and jam without breaking chunks or degrading texture.
Solution: Bi-wing or tri-lobe rotors with food-grade rubber covering. Rectangular inlets for high-viscosity products.
Challenge: Bacteria harbouring in pump crevices; product contamination; batch rejection risk.
Solution: Mirror-finished pumping chambers with zero pockets or crevices. Full GMP compliance.
Challenge: Handling sludge with stringy solids and high suspended content without blockage.
Solution: Large ball passage capability, enlarged inlet ports, and intermittent dry-run tolerance.
Our rotary lobe pumps are trusted across the following product categories and manufacturing processes in India:
Compact and Flexible Construction
Hygienic Construction
Low Maintenance Cost
Industrial Duty — Continuous Transfer
From dairy processing units in Punjab to pharmaceutical manufacturers in Hyderabad, from beverage plants in Maharashtra to chemical facilities in Gujarat — Unique Pump Systems' lobe pumps power critical fluid transfer operations across India's most demanding sectors.
Bakeries, breweries, beverage plants, dairy processors, confectionary, sugar mills.
Milk processing, cream separation, yoghurt filling, ice cream mix transfer.
Syrup filling, API transfer, ointment manufacturing, GMP-compliant processes.
Shampoo, lotions, toothpaste, cosmetic foundations, creams.
Resin plants, paint manufacturing, ink transfer, adhesive dosing.
Municipal sludge, industrial effluent, polymer feed, dewatering.
Our Alfa Series rotary lobe pumps are specified for maximum efficiency in fluid handling throughout the bakery, brewing, chemicals, cosmetics, confectionary, dairy, food, pharmaceutical, and allied industries. Here is a complete summary of the defining features:
We respect global competition, but for lobe pump manufacturers in India, Unique Pump Systems offers a clearly superior value proposition — particularly for buyers who need customisation, speed, and direct manufacturer accountability:
| Feature | Unique Pump Systems | Premium Global Brand | Indian Distributor / Reseller |
|---|---|---|---|
| Price Point | Competitive — Direct OEM pricing | Premium — High import cost | High — Distributor margin added |
| Lead Time | Stock to 2 weeks | 8 – 12 weeks | 4 – 6 weeks |
| Customisation | Full — Ports, shafts, baseplate, rotors | Limited — Standard configurations | Standardised — No factory access |
| Seal Options | Mechanical / Packed Gland / Flush seal | Standard hygienic seal | Industry-specific only |
| After-Sales Support | Direct factory support — pan-India | Dealer dependent | Dealer dependent |
| Import Substitute | Yes — from drawings or sample | Not applicable | Not available |
The Verdict
If you need a custom flange configuration, a specific rubber covering for the rotor, a trolley-mounted unit, or a fast supply of a direct import substitute — Unique Pump Systems is your best lobe pump supplier in India. Our factory is your factory.
Selecting the right rotary lobe pump requires more than matching a flow rate. Every application has unique variables — fluid viscosity at operating temperature, shear sensitivity, particulate content, temperature range, seal compatibility, and regulatory compliance. A wrong selection can mean product contamination, premature failure, or process inefficiency.
Our application engineers have deep experience specifying lobe pumps across hundreds of food, pharmaceutical, chemical, and industrial installations throughout India. When you contact us, please share the following information to receive the most accurate recommendation:
Information to Share With Our Engineers
No obligation. Our engineers will review your lobe pump requirements and provide a recommendation — typically within 24 hours.
Send Your RequirementsWhen you need to buy a lobe pump in India — whether for a new installation, an upgrade, or an urgent replacement — the choice of manufacturer matters enormously. Here is why plant engineers and procurement professionals across India choose Unique Pump Systems:
Beyond our industry-leading range of rotary lobe pumps, Unique Pump Systems manufactures a comprehensive portfolio of industrial pumps and sealing solutions — engineered to the same exacting standards our customers have trusted since 1988.
Common questions from engineers and buyers looking to purchase or specify industrial lobe pumps in India:
Stop settling for off-the-shelf pumps that do not fit your process. Tell us your fluid (viscosity, temperature, abrasiveness), your required flow rate, and we will size the perfect Alfa Series Lobe Pump within 24 hours.
